Cost-effective assembly solution for threaded stud and washer producers. Make assembly be high productivity and quality with minimum labors. An excellent machine to assemble washer onto stud, cross steel, stainless steel and and aluminum parts.
- Automatic sorting for missing parts, avoid the production waste.
- Digitalize barcode scanner, screen assembly quality, counting and packing assembled studs..
- Same machine applies for various sizes by Poka-Yoke changing parts.

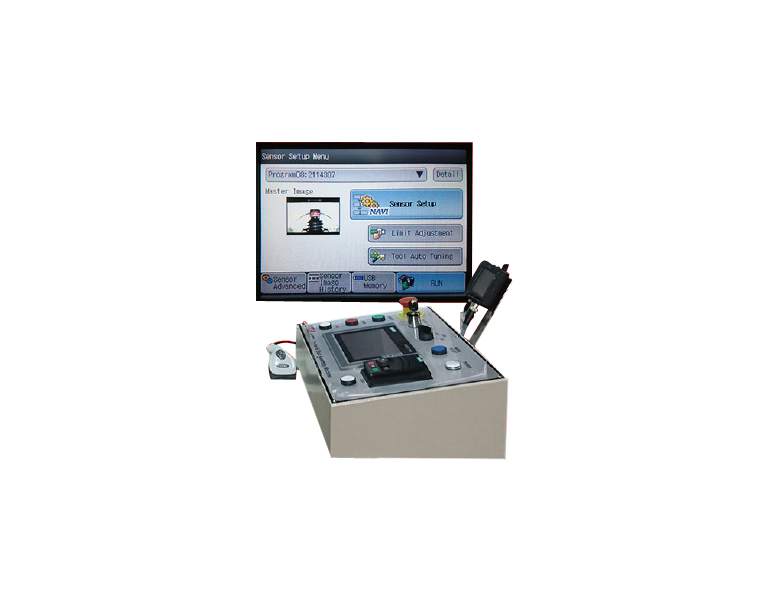

- Visible troubleshooting - Friendly operation panel, simple and easy.
- Applied for data acquired software on Industry 4.0 surrounding.
- Safety - Sound enclosure for operation. (optional)

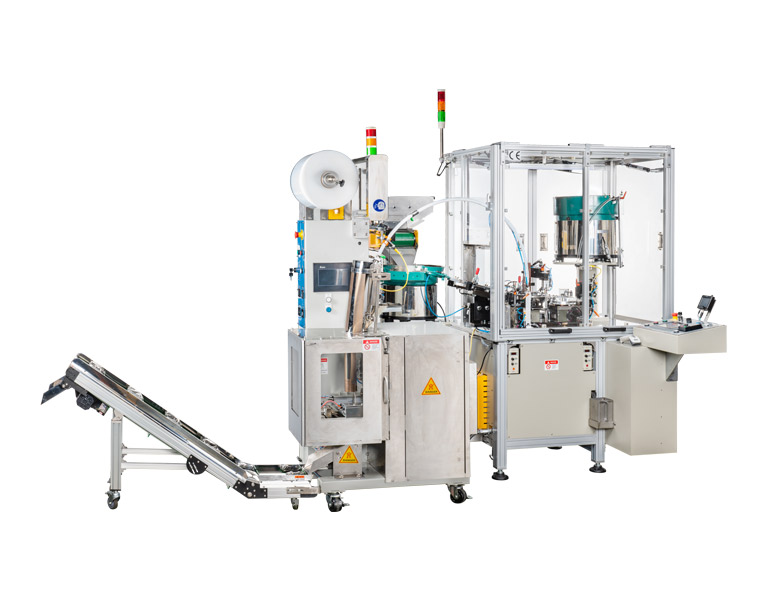

- Assembly machine size ( L x W x H ): 2,270 x 1,700 x 2,250 mm, N.W: 910 KG, with safety cover
- Packing machine size (L x W x H): 1,200 x 870 x 2,080 mm, N.W.: 350 KG, with safety cover
- Motor: 1/2 P, power consumption: 6.8 KW, compressed air: 6 kg*2
- Safety certificate: CE
- OEM, ODM machine. Tool machine according to stud specification, hopper is optional.
- Appearance will be various due to design requirement.
|Model||Stud (OD) mm / gauge||Stud (L)||Washer(OD)||Washer (T)||Speed (PPM)||Remark|
|CCD||Inline camera sorting unit|
|Packing||Inline counting and packing machine Poly bag (LxW): 120x170 mm (customized), quantity: 100 pc/bag (various)|
