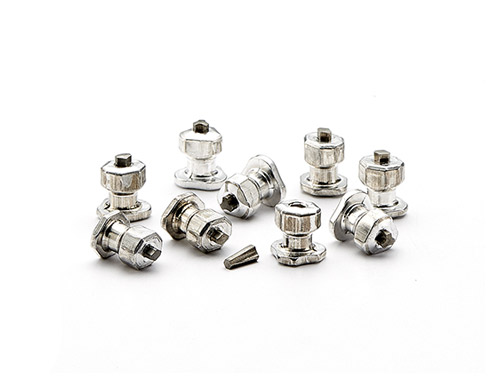

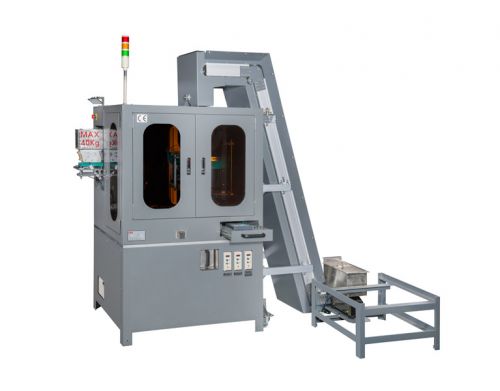

Cost-effective assembly solution for snow tire stud producers. Make assembly be high productivity and quality with minimum labors. An excellent machine to assemble pin into stud, cross tungsten steel pin and aluminum body.
- Automatic sorting for missing parts, avoid the production waste.
- Monitor the loading force and assembly depth by sensors and cameras.
- Same machine applies for various sizes by changing parts.
- Visible troubleshooting - Friendly operation panel, simple and easy.
- Safety - Sound enclosure for operation. (optional)
- Assembly machine size ( L x W x H ): 1,200 x 950 x 1,850 mm, N.W: 1,300 KG, with safety cover
- Motor: 3 P, power consumption: 6.8 KW, compressed air: 6 kg
- Safety certificate: CE
- OEM, ODM machine. Tool machine according to stud specification, hopper is optional.
- Appearance will be various due to design requirement.
|Model||Stud (ODxod)||Stud (H)||Pin (OD)||Pin (L)||Speed (PPM)||Remark|
|SN01-8||8.5x7.4||8.8||2.6||5.5||150~200||Load Cell, CCD, 2 pc assembly,|
|0.334x0.291||0.346||0.102||0.216||150~200||Load Cell, CCD, 2 pc assembly,|
|8.8||2.6||5.8||150~200||Load Cell, CCD, 2 pc assembly,|
|0.346||0.102||0.225||150~200||Load Cell, CCD, 2 pc assembly,|
