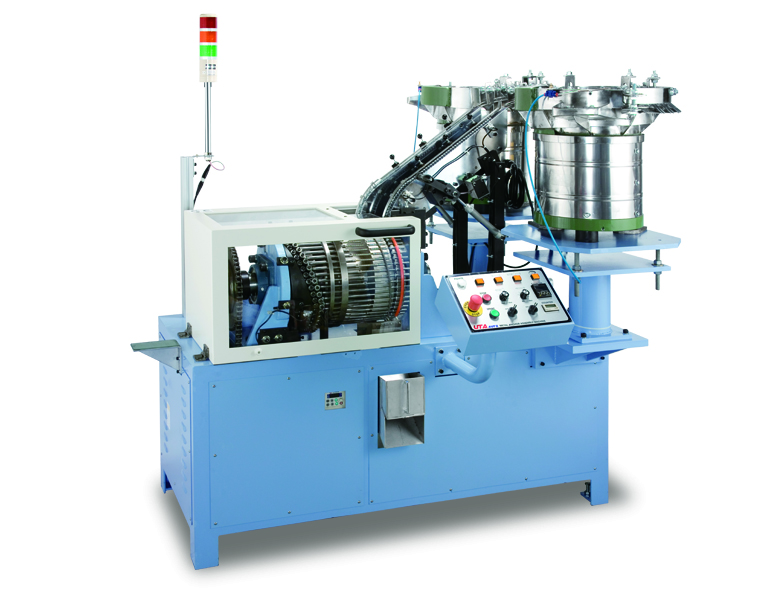

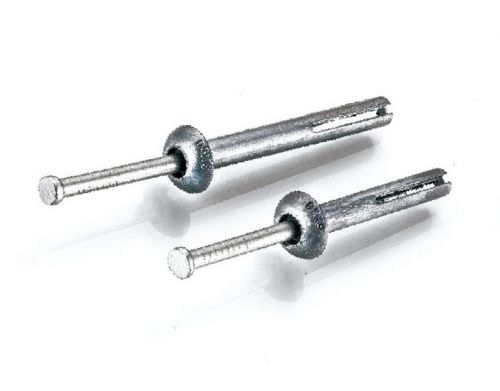

Cost-effective solution for anchor production. High assembly efficiency with sorting function. Make assembly be high productivity and optical quality with minimum labors. Excellent machine to assemble drive nail into metal anchor.
- High speed production speed with sorting device. Let you free from the failure assembly quality issue.
- Reliable performance, one operator for several machines.
- Friendly operation indication, easy maintenance.
- Machine has a safety cover. It provides you a safety operation surrounding.
- Assembly machine size ( L x W x H ): 2,000 x 1,300 x 1,850 mm, N.W: 1,143 KG, with safety cover
- Motor: 1 HP, compressed air: 6 kg
- Safety certificate: CE
- OEM, ODM machine.
Tool machine according to anchor or nail specification, safety cover is optional, hopper is optional.
Appearance will be various due to design requirement.
|Model||Anchor (OD)||Anchor (L)||Nail (OD)||Nail (L)||Speed (PPM)||Remark|
|LZ07-55||6.0||25 ~ 50||3.7||34 ~ 58||200|
