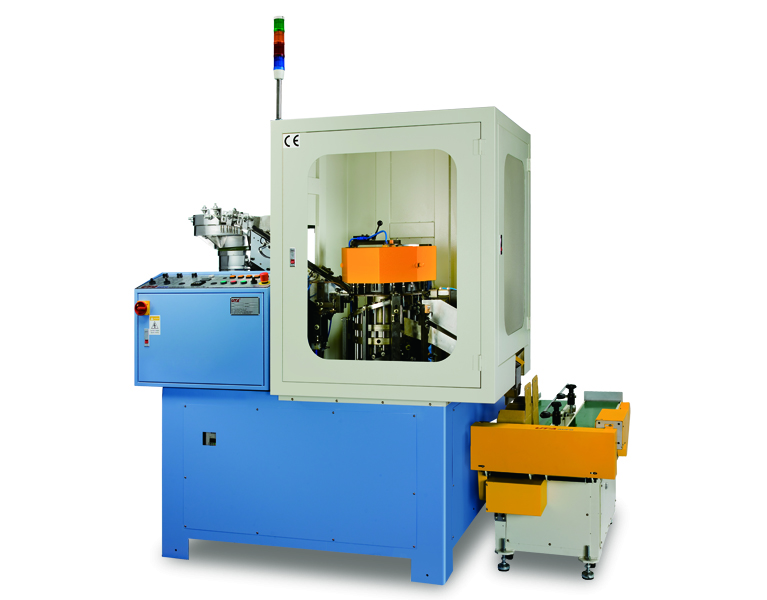

Cost-effective solution for screw production. One machine assembles for different anchor sizes. High assembly speed with automatic sorting function. Make assembly be productivity and quality, with minimum land space and labor. The leading screw makers specify the UTA assembly machine for screw assembly production.
The latest model provides the significant benefit from boxing unit connection. Make assembly and package in one work station. Same job with less labor and space.
- Beneficial packing connection -
Quick connect with box unit (optional). Accurate packing by number.
- High production -
Quick changeover design and reliable output speed.
- Safety -
Equips with the safety cover and device protect the operator from injuring and noise. (safety cover is an optional purchase)
- Smart -
Sensors on the feeding and assembling , machine stops automatically while it runs out of the parts.
- Quality machine -
Equip the sorting device to separate the failure assembly pat from finished parts. It promises you the excellent collection.
- Safety -
Sound enclosure for operation. (optional)
- Assembly machine size ( L x W x H ): 1,940 x 1,680 x 2,100 mm, N.W: 1,440 KG, with safety cover (LZ05 / LZ08)
Assembly machine size ( L x W x H ): 1,960 x 1,780 x1,800 mm, N.W: 2,100 KG, with safety cover (LZ06)
Assembly machine size ( L x W x H ): 1,940 x 1,680 x1,750 mm, N.W: 1,405 KG, without safety cover (LZ05 / LZ08)
Boxing unit ( L x W x H): 1,150 x 600 x 670 mm, N.W.: 150 KG
- Motor: 1/4 P, power consumption: 12 A (LZ05 / LZ08), 11 KVA (LZ06), compressed air: 6 kg
- Safety certificate: CE
- OEM, ODM machine. Tool machine according to blind rivet specification, safety cover is optional, hopper is optional.
Appearance will be various due to design requirement.

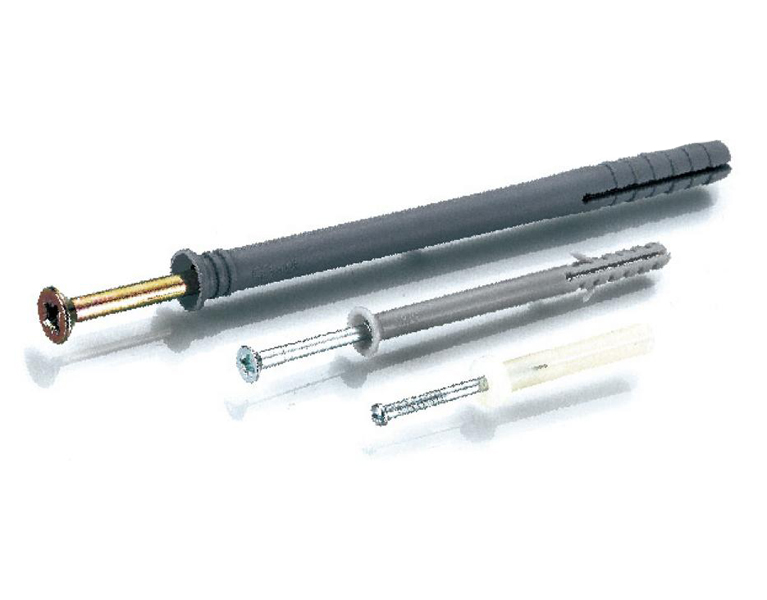

|Model||Anchor (OD)||Anchor (L)||Screw (OD)||Screw (L)||Speed (PPM)||Remark|
|LZ05-80||5 – 6 – 8 - 10||35 ~ 80||3.5 - 3.9 - 4.9 - 6.9||25 ~ 85||250 ~ 600||Not for boxing unit model|
|LZ06-150||5 – 6 – 8 - 10||35 ~ 150||3.5 - 3.9 - 4.9 - 6.9||40 ~ 155||150 ~ 250||Not for boxing unit model|
|LZ08-80||5 – 6 – 8 - 10||35 ~ 80||3.5 - 3.9 - 4.9 - 6.9||25 ~ 85||250 ~ 600||for CF boxing unit model|
|CF01-1000||Minimum package: 50 pcs per box, box size ( L x W x H): 120 x 120 x 110 mm (bespoken)||For LZ08-80|
