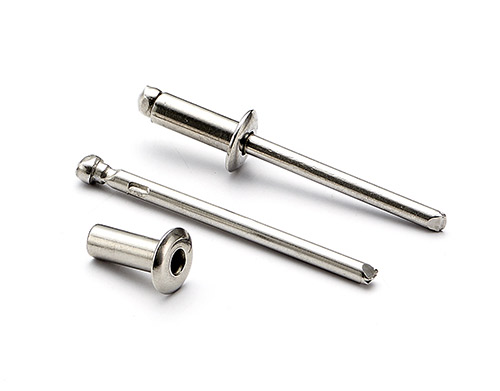

Disassembly solution for blind rivet producers. Reuse the rivet by removing the mandrel. No cost on waiting for new production.
Automatic stop for run-out parts, avoid the production waste.

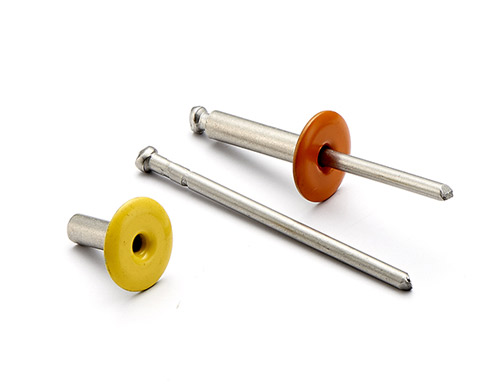

Flexible changeover for different washer and rivet size.
Visible troubleshooting - Friendly operation panel, simple and easy.
Safety - Sound enclosure for operation. (optional)
Service for whole plant equipment solution - Heading machine, Nail making machine, polishing machine, dehydration dryer machine, painting machine, assembly machine, etc.

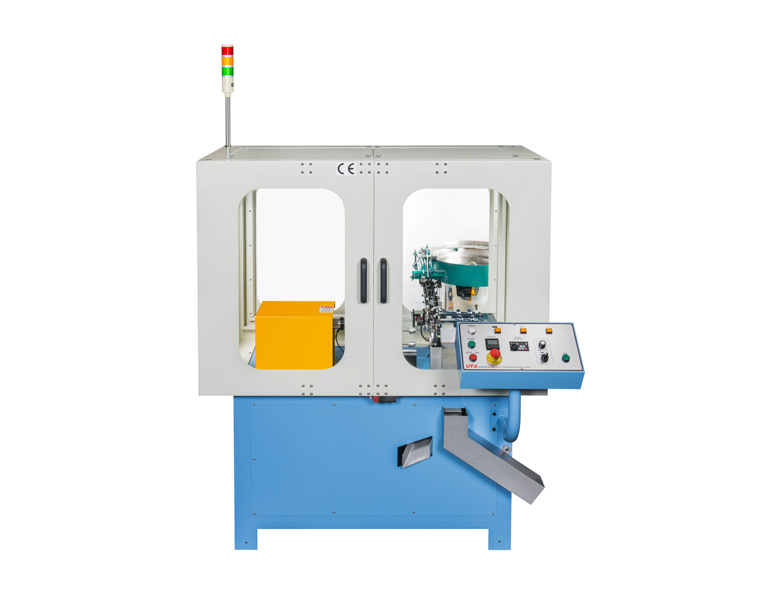

Assembly machine size ( L x W x H ): 1,550 x 1,600 x 1,900 mm, N.W: 730 KG, with safety cover
Motor: 1/2 P, power consumption: 6.8 KW, compressed air: 6 kg
Safety certificate: CE
OEM, ODM machine. Tool machine according to blind rivet specification, safety cover is optional, hopper is optional.
Appearance will be various due to design requirement.
Model
Rivet (OD)
Rivet (L)
Stem (L)
Speed (PPM)
Remark
LH01-30
3.2-4.0-4.8
10～30
65～70
100～150
1-pc disassembly
1/8-5/32-3/16
0.394～1.181
2.559～2.756
100～150
1-pc disassembly
CE
