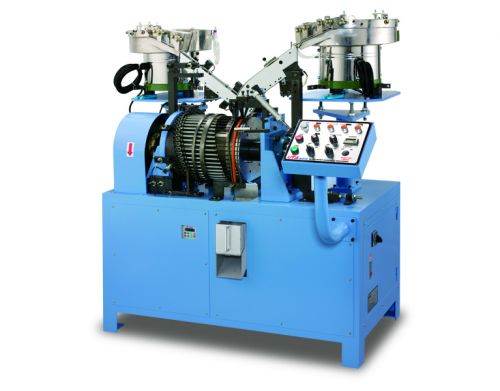

Cost-effective solution for blind rivet producer. High assembly efficiency with sorting function. Make assembly be high productivity and quality with minimum labors. Excellent machine to assemble open type blind rivets, cross aluminum, steel and stainless steel material.
- High speed production speed with "sorting" device. Let you be free from the failure assembly issue.
- Reliable performance, one operator for several machines.
- Friendly operation indication, easy maintenance.
- Machine has a safety cover. It provides you a safety operation surrounding.
- Service for whole plant equipment solution
Heading machine, Nail making machine, polishing machine, dehydration dryer machine, painting machine, assembly machine, etc.
- Machine size ( L x W x H ): 2,820 x 1,390 x 2,420 mm, N.W: 1,080 KG, with safety cover
Machine size ( L x W x H ): 1,500 x 900 x 1,800 mm, N.W: 700 KG, without safety cover - Motor: 1/2 P, Compressed air: 6 kg
- Safety certificate: CE
- OEM, ODM machine. Tool machine according to blind rivet specification, safety cover is optional, hopper is optional.
Appearance will be various due to design requirement.
| Model | Body (OD) | Body (L) | Stem (OD) | Stem (L) | Speed (PPM) | Remark |
|---|---|---|---|---|---|---|
| LA01-12 | 2.4 (3/32) | 6 ~ 12 (0.236~ 0.472) |
1.3 ( 0.051) | 36 ~ 50 (1.417~ 1.969) |
250 ~ 450 | |
| 3.2 (1/8) | 6 ~ 12 (0.236~ 0.472) |
1.8 (0.071) | 36 ~ 50, 40 ~ 55 (1.417~ 1.969), (1.575~ 2.165) |
300 ~ 450 | ||
| LA01-30 | 4.0 (5/32) | 8 ~ 30 (0.315~ 1.181) |
2.2 (0.087) | 45 ~ 60, 50 ~ 65 (1.772~ 2.362), (1.969~ 2.559') |
300 ~ 450 | |
| 4.8 (3/16) | 8 ~ 30 (0.315~ 1.181) |
2.7 (0.106) | 45 ~ 60, 50 ~ 65 (1.772~ 2.362), (1.969~ 2.559') |
300 ~ 450 | ||
| 6.4 (1/4) | 8 ~ 30 (0.315~ 1.181) |
3.9 (0.154) | 45 ~ 60, 50 ~ 65 (1.772~ 2.362), (1.969~ 2.559') |
200 ~ 350 | ||
| LA07-41 | 4.0 (5/32) | 16 ~ 38 (0.630~ 1.496) |
2.2 (0.087) |
55 ~ 70 |
250~ 300 | long rivet |
| 4.8 (3/16) | 16 ~ 38 (0.630~ 1.496) |
2.7 (0.106) | 55 ~ 70 (2.165~ 2.756) |
250~ 300 | long rivet | |
| 6.4 (1/4) | 19 ~ 41 (0.748~ 1.614) |
3.9 (0.154) | 50 ~ 72 (1.968~ 2.835) |
150~ 250 | long rivet | |
| LA09-30 | 4.0 (5/32) | 8 ~ 30 (0.315 ~ 1.181) |
2.0 (0.079) | 45 ~ 60, 50 ~ 65 (1.772~ 2.362), (1.969~ 2.559) |
200 ~ 350 | Quick adjustment device cross length |
| 5.0 (0.197) | 8 ~ 30 (0.315~ 1.181) |
2.7 (0.106) | 45 ~ 60, 50 ~ 65 (1.772~ 2.362), (1.969~ 2.559) |
200 ~ 350 | Quick adjustment device cross length | |
| LA12-6 | 3.0 (0.118) | 2.5 ~ 6.3 (0.098 ~ 0.248) | 1.8 (0.071) | 35 (1.738) | 100 ~ 200 | tiny rivet |
