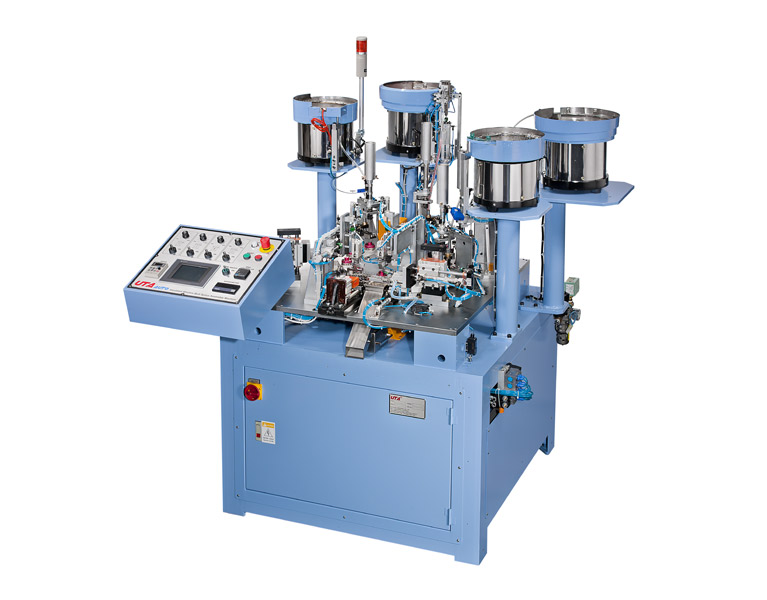

Cost-effective assembly solution for heat staking and assembly of butt splice , ferrule and plastic tubing. One machine applies for multiple wire gauge connectors on 4-pc assembly. Make assembly be high productivity and quality with minimum labors.

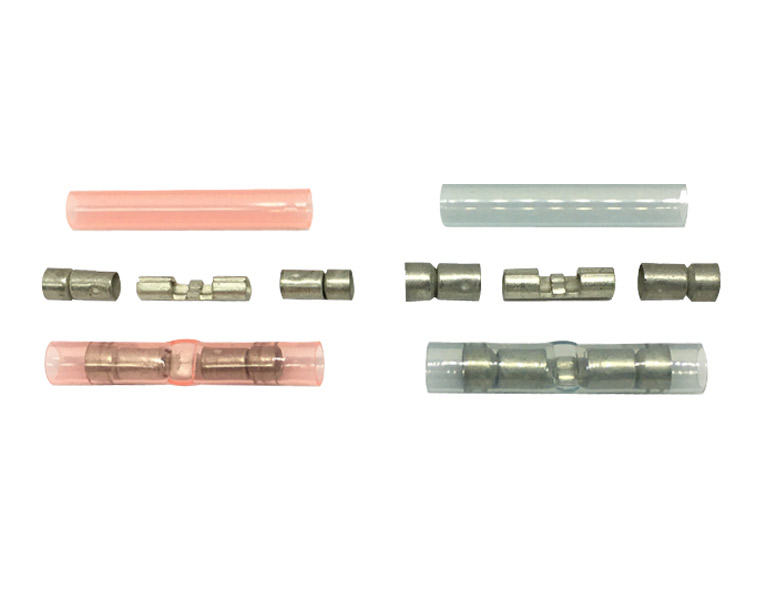

- Automatic 4-pc assembly (butt splice, ferrule x 2, nylon tubing).
- Multi wire gauge production in one machine.
- Quick changeover job for different wire gauges.
- Build-in PLC organizes machine from feeding to assembly. Machine stops automatically while rut out of terminals, sleeves or failure assembly.
- Friendly operation indication, one operator for several machines.
- Assembly machine size ( L x W x H ): 1,730 x 1，720 x 1,600 mm, N.W: 1，112 KG, without safety cover
- Motor: 1/2 HP, compressed air: 6 kg, power consumption: 7 KVA
- Safety certificate: CE
- OEM, ODM machine. Tool machine according to terminal and tubing specification, safety cover is optional, hopper is optional.
- Appearance will be various due to design requirement.
|Model||Wire mm2||Wire AWG||Speed (PPM)||Remark|
|AF01||1 / 2||22 - 18 / 16 – 14||30||4-PC assembly, with heat staking unit|
