Why Close End Connectors?

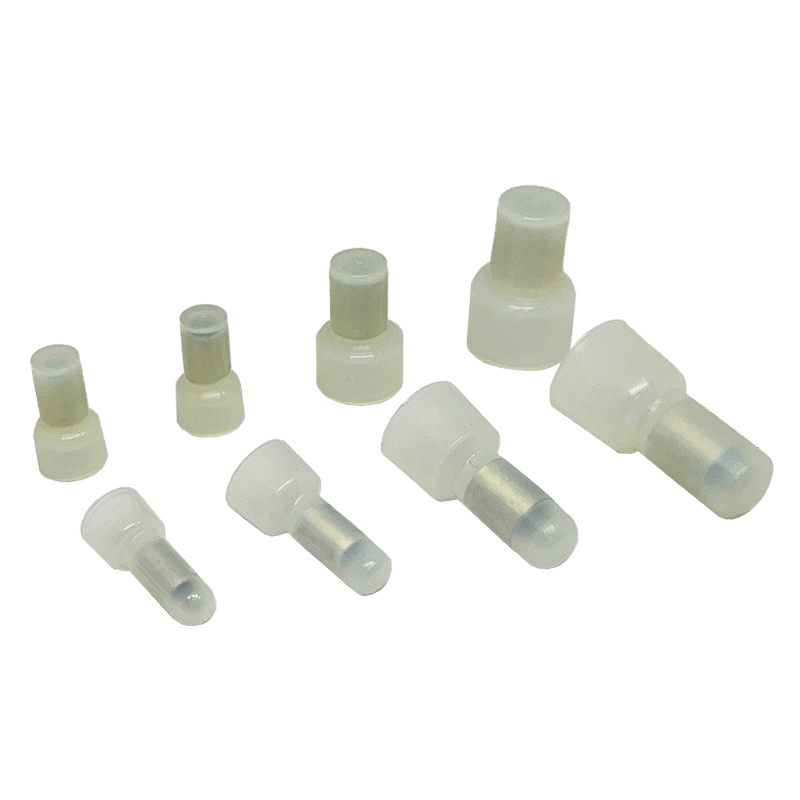

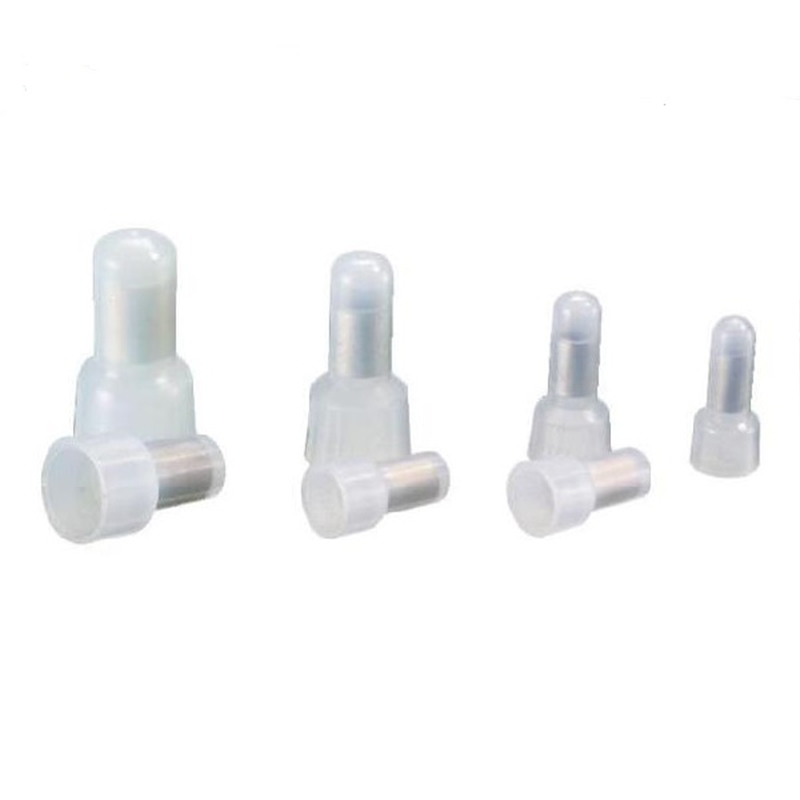

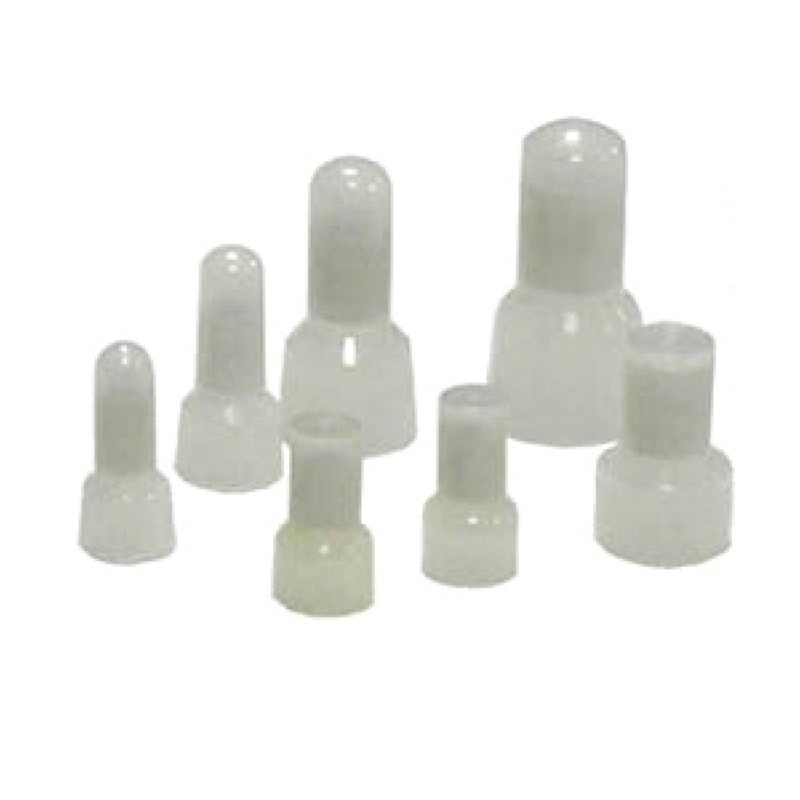

UTA Close End Connectors are nylon-insulated crimp terminals designed for reliable wire terminatons in automotve, lightng, and industrial applicatons. These connectors feature a tn-plated copper insert that allows multple wires to be securely crimped into one terminaton point. Ideal for bundling ground wires or safely capping unused leads in a wiring harness.



Key Features:

  • Available for wire ranges: AWG 22–10
  • Tin-plated copper tube for stable conductvity
  • Flame-retardant, RoHS-compliant materials
  • Easy crimping with standard hand tools

Applicatons:

  • Automotve wiring harness consolidaton
  • Electrical panel wire bundling
  • Lightng system installatons
  • Household appliances

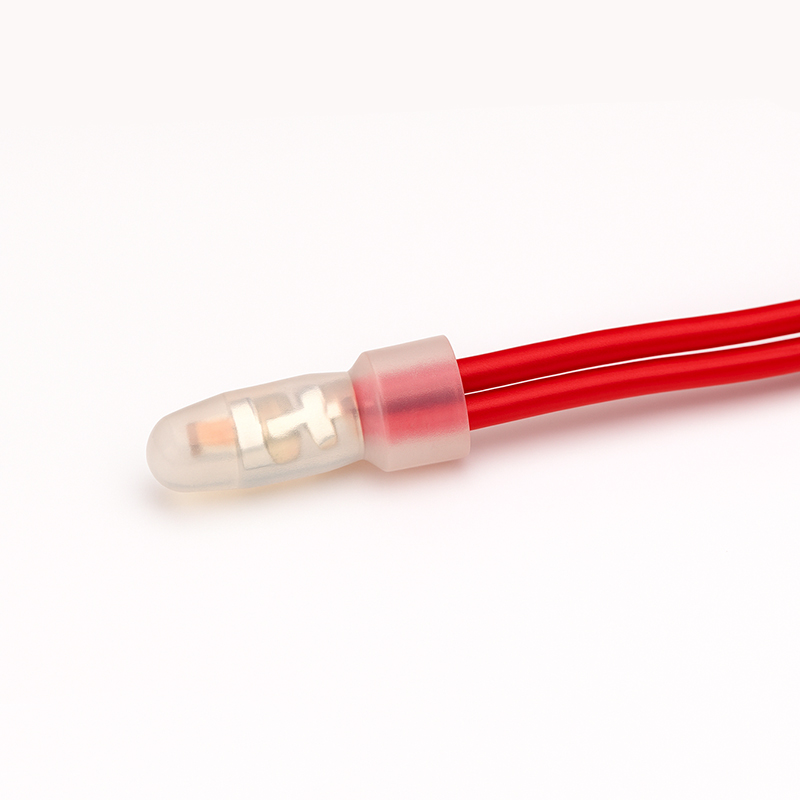

How to Use Close-End Connectors (Installing a Close-End Connector):

Follow these steps:

1. Strip the wire insulaton –Remove approximately 12–16 mm of insulaton from each wire you want to terminate. The length of exposed wire should be sufcient to enter the connector and make contact with the copper insert.
2. Insert the wires – Slide the bare wires into the copper barrel inside the nylon cap untl fully seated.
3. Crimp the connector – Use a plier-style crimper to compress the barrel. Crimp frmly in the center of the connector body.
4. Inspect the crimp – Make sure all wires are tghtly secured and the connector is not loose. Gently tug the wires to confrm a solid connecton.


Why Choose UTA:

With over 45 years of experience in terminal manufacturing, UTA delivers consistent quality, fast lead tme, and customizable packaging for OEM and afermarket needs.
