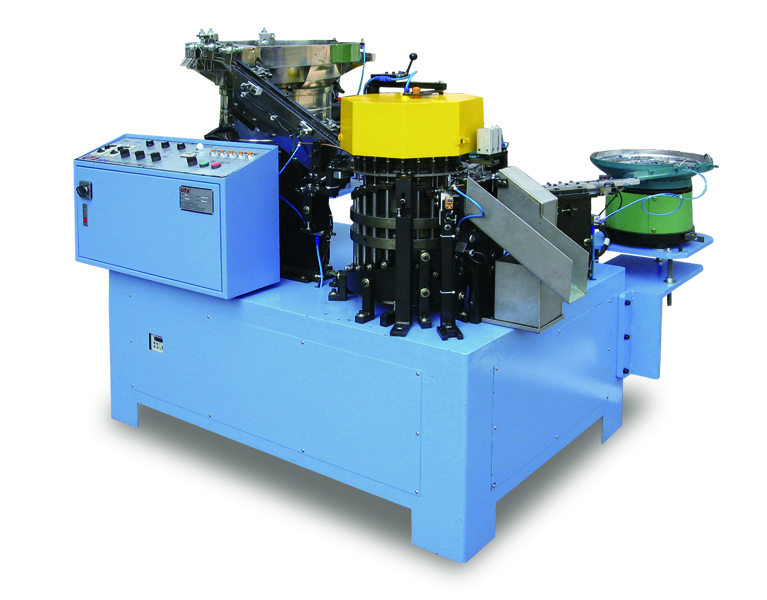

Cost-effective solution for screw production – automatic assemble screw into washer. One machine assembles for different screw sizes, and applies for 2-pc or 1-pc washer. High assembly speed with automatic sorting function. Make assembly be productivity and quality, with minimum land space and labor. The leading screw makers specify the UTA assembly machine for screw assembly production.

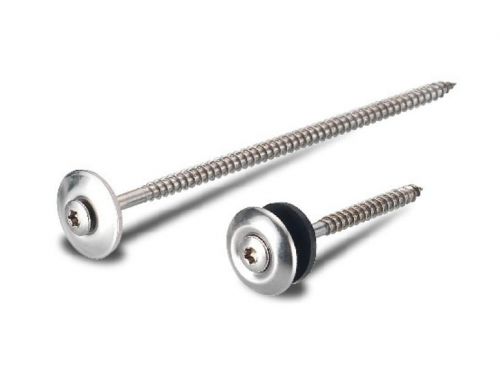

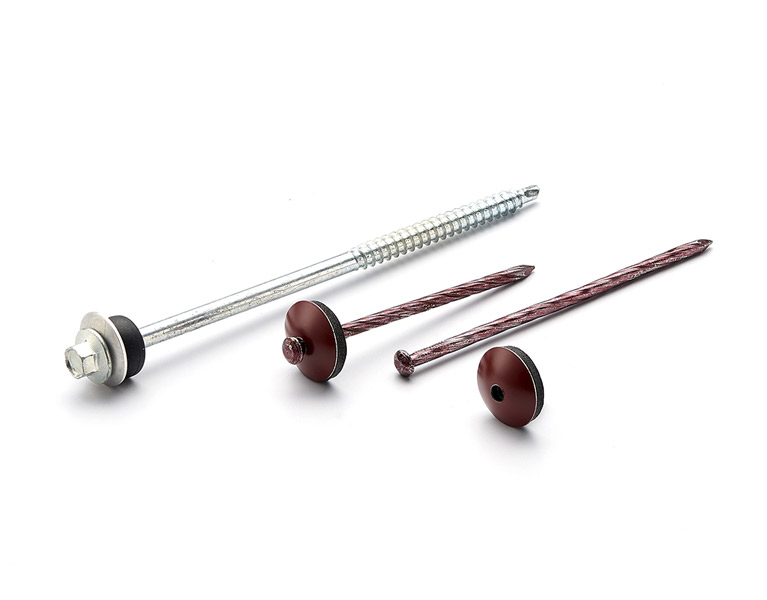

- Flexible operation for 1 pcs or 2 pcs M-type washers
- Machine equips with the safety movement and detective sensors, to protect the operator and machine from damage.
- The feeding and assembling points equip with the sensors. It stops automatically while it runs out of the parts.
- Assembly machine size ( L x W x H ): 1,800 x 1,550 x 1,500 mm, N.W: 1,225 KG, without safety cover
- Motor: 1/4 HP, compressed air: 6 kg
- Safety certificate: CE
- OEM, ODM machine. Tool machine according to screw and washer specification, safety cover is optional, hopper is optional.
Appearance will be various due to design requirement.
|Model||Screw (OD)||Screw (L)||Washer (OD)||Speed (PPM)||Remark|
|SJ01-75||4.5||25 - 75||15 – 20||13 - 18||150~200|
