Manufacture for wiring terminals – High pull strength crimp connector, plus the excellent chamfered entries, make wiring be reliable and easier. Seamless butt splice from copper tubular with tin plated.
- Most economic way to meet high wire pull strength requirement.
One butt instead of conventional 3 pcs connector. Free from the loosen ferrules quality issue.
- Copper tubular brings excellent conductivity character.
A ductile metal with high thermal and electrical conductivity. UTA standard butt splices use the ETP (Electrolytic Tough Pitch) and the DHP (Phosphorus-Deoxidized, High Residual P) grade. Each terminal is tempered well for easy installation.

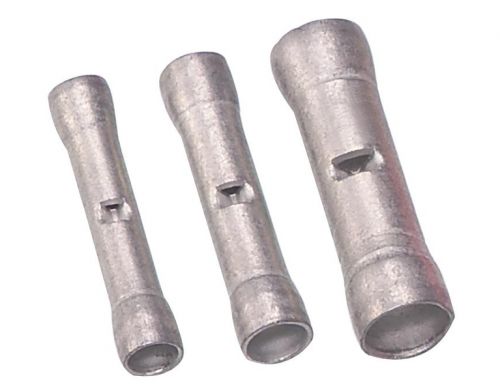

- Seamless type butt splice
All-direction crimping. Reliable strength gets the better of seam butt splice.
- Excellent chamfer treatment at both entries
Free from burrs, Quicker wire insertion faster and easier.
- Quality tin plating.
Non-toxic, ductile and corrosion resistant. The excellent ductility of tin allows a tin coated base metal sheet to be formed into a variety of shapes without damage to the surface tin layer. It provides sacrificial protection for copper, nickel and other non-ferrous metals.
- Electric current rating: AWG 22 -18: 17 A, AWG 16 -14: 30 A, AWG 12 -10: 50 A
- US military standard compliant.
- Approval: RoHS
|Part. No||Wire mm2||Wire AWG||OD mm||ID mm||L mm||PCS / Bag||Remark|
|DB-1||0.5 - 1.0||22 - 18||3.3 ( 0.130)||1.7 ( 0.067)||21.6 (0.850)||3,000|
|DB-2||1.5 - 2.5||16 - 14||4.0 (0.157)||2.4 ( 0.094)||21.9 (0.862)||2,000|
|DB-5||4.0 - 6.0||12 - 10||5.5 (0.217)||3.6 (0.142)||23.6 (0.929)||1,000|
